Description

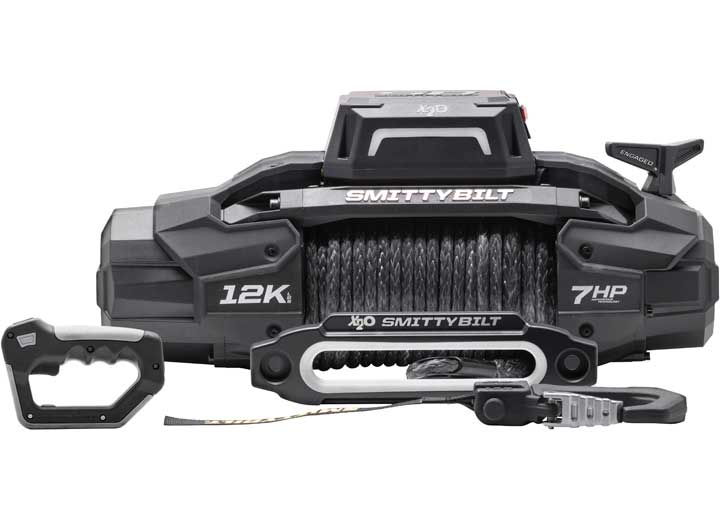

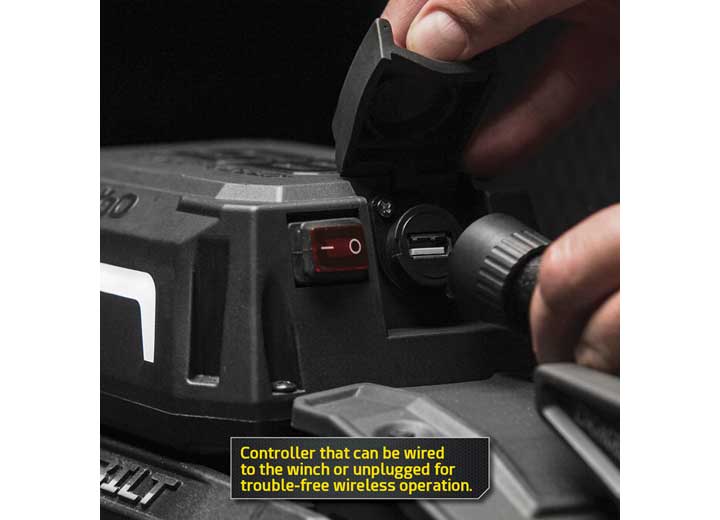

The Smittybilt X2O winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O GEN3 winch features a series wound 7HP motor that is completely sealed, as well as all-new forged gears. The X2O line features a completely waterproof 500 AMP control box that can be mounted in 2 different locations.
- Not Vehicle Specific

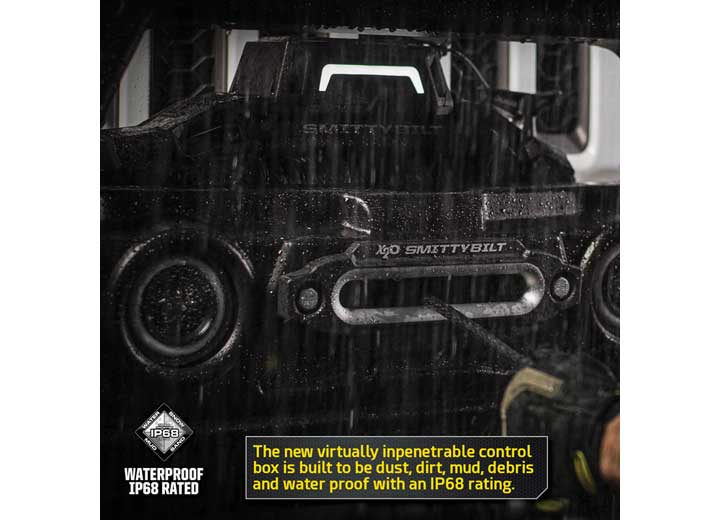

- Waterproofing: IP68 Rating
- Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
- Motor: 7hp Series Wound
- Control: Remote Switch, 12' (3.7m) lead
- Gear Train: 3-Stage Planetary
- Gear Ratio: 216:1

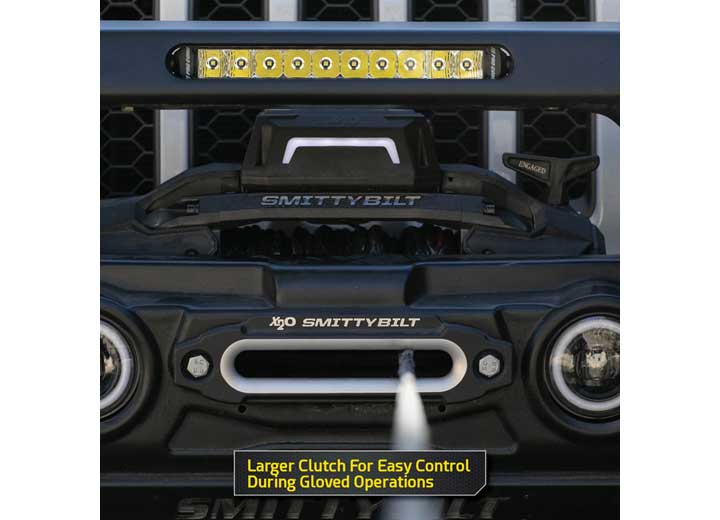

- Clutch: Sliding Ring Gear
- Brake: Automatic Out-Of-Drum
- Drum Size: Diameter 2.5""
- Cable: 98.5' 3/8"" Diameter
- Cable Type: Synthetic Rope

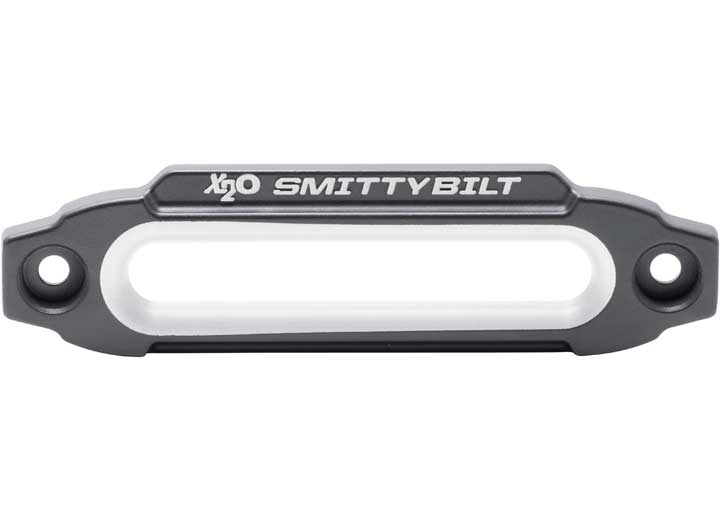

- Fairlead: Hawse

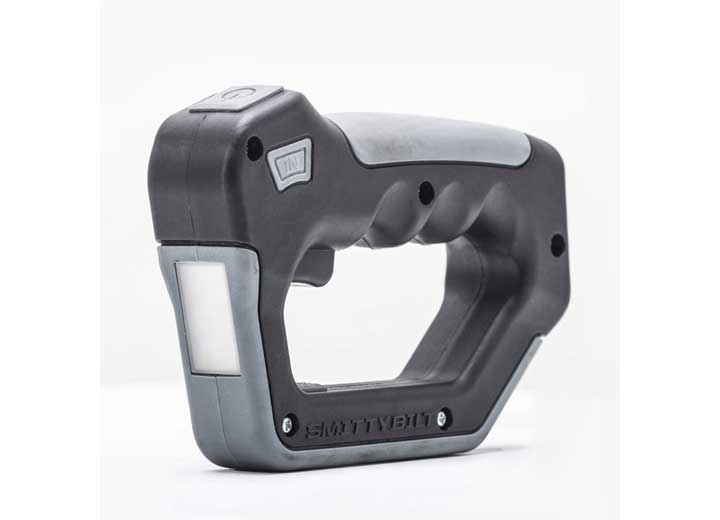

- Remote Control: Included

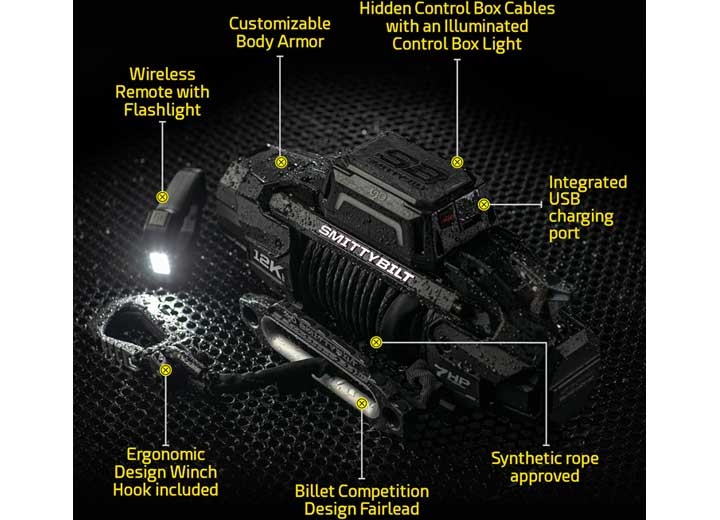

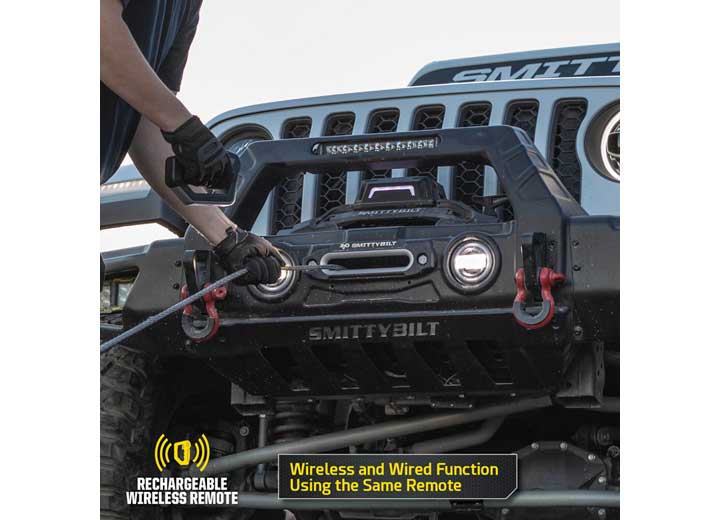

- Integrated Wireless Remote
- Recommended Battery: 650CCA Minimum for Winching
- Battery Leads: 25mm2, 72""(1.83m)1
- Finish: Textured Black
- Weight: 76.0Lbs (30.4Kgs)
- Mounting Bolt Pattern: 10.0"" x 4.50""
- Overall Dimensions: (L x W x H) 22.3"" x 5.4"" x 9.4""
